Gating Cells in cytoverse using gatingTemplates (optional)

Source: vignettes/5_Gating_gatingTemplate.Rmd

Using openCyto gatingTemplate

In Part 1 we identified various gates available in cytoverse and how to use them. Here, we show how users can compose a similar gating scheme by using a gatingTemplate.

A gatingTemplate is a csv file that describes the gating sequence and the gating methods. In the gatingTemplate csv file, we can leverage the various automated gating methods that we have previously seen, without explicitly requiring to script it in R.

Let’s take a look at an example gatingTemplate

# load gatingTemplate csv
gt_file <- get_workshop_data("gating_template/")

knitr::kable(read.csv(gt_file$rpath))
alias pop parent dims gating_method gating_args collapseDataForGating groupBy preprocessing_method preprocessing_args
singlet + root FSC-A,FSC-H singletGate wider_gate=FALSE,prediction_level=0.95 FALSE NA NA NA
live - singlet Live gate_quantile probs = 0.95 FALSE NA NA NA
lymphocytes + live FSC-A,SSC-A flowClust.2d K = 1,target = c(1E5,0.5E3) FALSE NA NA NA
CD3 + Cells + lymphocytes CD3 mindensity NA NA NA NA
non-NKT Cells - CD3 + Cells CD1d mindensity TRUE status NA NA
NKT Cells + CD3 + Cells CD1d mindensity gate_range=c(130,200),min = 130 TRUE status NA NA
True_NKT Cells + NKT Cells CD1d,CD3 flowClust.2d K=2,target=c(150,175) TRUE status NA NA
Conv T Cells – non-NKT Cells Vd1,Vg9 mindensity FALSE NA NA NA
MAIT Cells ++ Conv T Cells CD161,TCR Va7_2 gate_quantile probs = 0.97 TRUE status NA NA
not_MAIT Cells + Conv T Cells boolGate !MAIT Cells NA NA NA
CD4_ref + not_MAIT Cells CD4 mindensity NA NA NA
CD8_ref + not_MAIT Cells CD8 mindensity NA NA NA
CD4+ T Cells +- not_MAIT Cells CD4,CD8 refGate CD4_ref:CD8_ref NA NA NA
CD8+ T Cells -+ not_MAIT Cells CD4,CD8 refGate CD4_ref:CD8_ref NA NA NA

Required columns

There are 10 columns that are required in a gatingTemplate csv file:

  • alias# : name (alias) of the gate
  • pop# : + or -; a combination such as: –, -+, ++, +-; *.
  • parent# : parent population
  • dims# : channels or markernames
  • gating_method# : gating method to be used. example: mindensity
  • gating_args: additional arguments that can be passed to gating_methods
  • collapseDataForGating: logical indicating if the data is to be collapsed onto a single flowFrame before estimation
  • groupBy: string indicating the grouping variable (within pData slot of the GatingSet)
  • preprocessing_method: preprocessing method to be used
  • preprocessing_args: additional arguments that can be passed to preprocessing_method

Note: # indicates that these fields must be completed. Others can be left blank.

Understanding the structure of a gatingTemplate csv file

Above, It should be apparent that the each row of the gatingTemplate csv file is akin to the function call to a specific type of gate.

Let’s take a look at a simple example of the node singlet:

  • alias: singlet name of the gate
  • pop: + indicating that we want events inside the gate
  • parent: root indicating the parent population
  • dims: FSC-A,FSC-H indicating the channels that the function should use
  • gating_method: singletGate indicating the gating method
  • gating_args:wider_gate=FALSE,prediction_level=0.95 indicating a tight gate
  • collapseDataForGating: FALSE indicating not to collapse the entire GatingSet into 1 flowFrame for estimation
  • groupBy: NA indicating that no grouping is to be done
  • preprocessing_method: NA indicating that no preprocessing is to be done
  • preprocessing_args: NA indicating that no preprocessing argument is specified

The row for the CD4+ T Cells we note:

  • gating_method: refGate

  • gating_args: CD4_ref:CD8_ref

A refGate (reference gate) allows us to build gates by providing references to a previously constructed gates. In this instance, we first constructed 1D gates CD4_ref and CD8_ref, and leveraged them to generate our CD4+ T Cells gate.

Also note:

  • pop:+-

  • dims: CD4,CD8

Here we indicated that CD4+ T Cells are CD4+ and CD8-.

A word of caution: We did not specify channels, rather we left openCyto to match the dims argument with markernames of the GatingSet. If there are similarly named markers (CD3 and CD33) and we provide dims: CD3, the process will not complete successfully!

Visualizing the gatingTemplate tree

Let us now parse this csv file into a gatingTemplate object

# required library
library(openCyto)

# directly read in a csv
gt <- openCyto::gatingTemplate(gt_file$rpath)

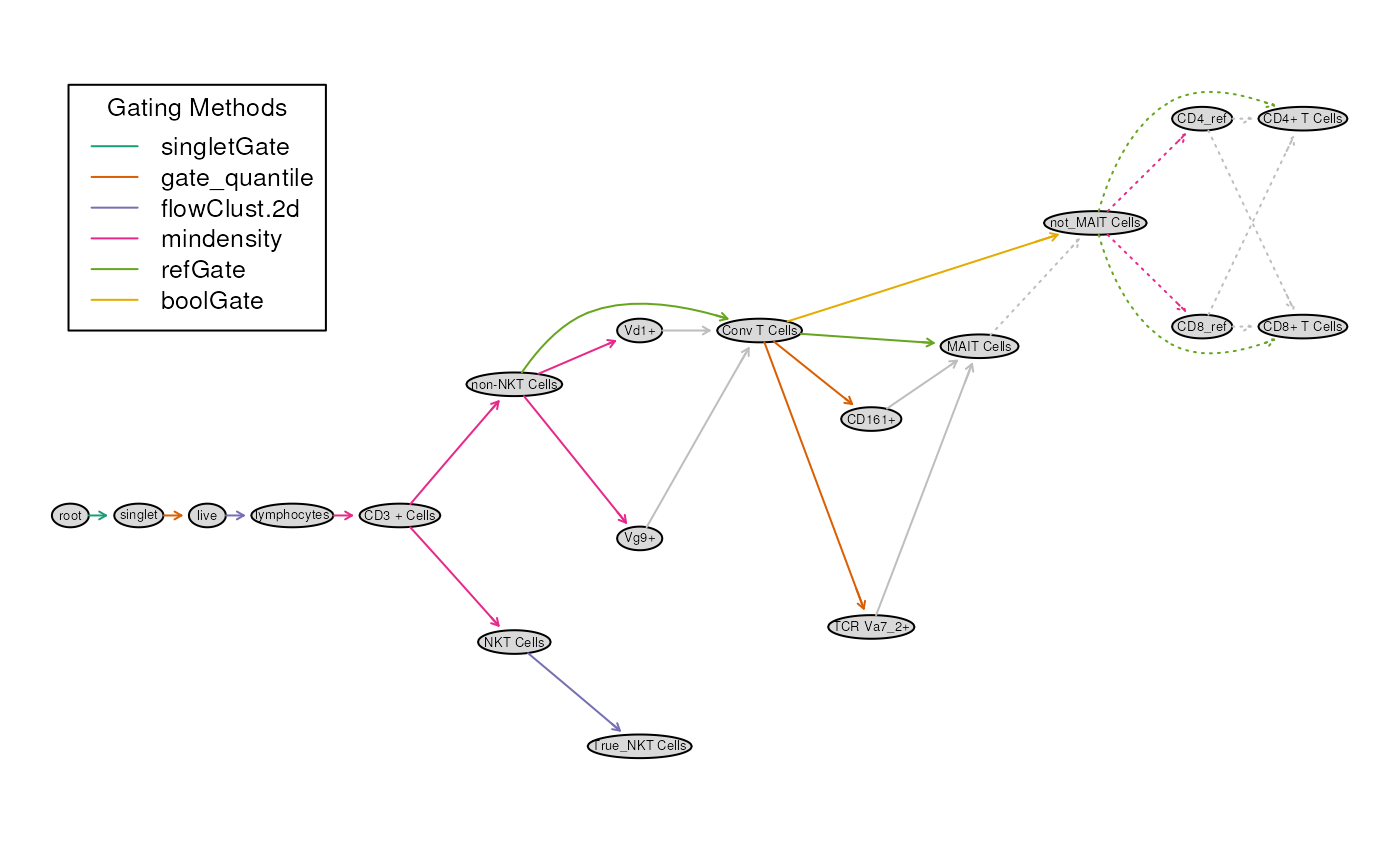

Now that we have gt we should first visualize the hierarchy to confirm that it matches our expectations! To achieve this we use plot. As well, we will compare it to the GatingSet we created earlier.

# show gt
plot(gt)

The tree diagram summarizes the gating path as well as the gating methods used. Also note that the grey colored arrows identify helper gates. These are gates which constructed in to help construct a final gate. Above, the gate for MAIT Cells is to be created by first constructing 2, 1D gates TCR Va7_2+ and CD161+.

# show gs
plot(gs)

Beside the names, most nodes look the same!

Adding a new population

Let’s append a 1 more population to this scheme: - Non Naive defined as CCR7+CD45RA- or CCR7-CD45RA- or CCR7-CD45RA+

To do this, we first create a Naive node and then negate it!

# Non Naive
additional_rows <- data.frame(
  alias = c("Naive", "Non Naive"),
  pop = c("++","+"),
  parent = c("CD4+ T Cells","CD4+ T Cells"),
  dims = c("CCR7,CD45RA","CCR7,CD45RA"),
  gating_method = c("mindensity", "boolGate"),
  gating_args = c("","!Naive"),
  collapseDataForGating = c("",""),
  groupBy = c("",""),
  preprocessing_method = c("",""),
  preprocessing_args = c("","")
)

gt <- read.csv(gt_file$rpath) |>
  rbind(additional_rows)|> data.table::as.data.table()|>
  gatingTemplate()

# visualize
plot(gt)

Running and attaching the nodes to the GatingSet

Since we have saved our GatingSet let’s first remove all the nodes including and downstream of singlet.

# clean gs
gs_pop_remove(gs, "singlet") # removes singlet and all children nodes
recompute(gs)

We now use gt_gating(gt,gs) to estimate and attach gates to the GatingSet in a single call.

# add gates defined in gatingTemplate
gt_gating(gt, gs) # simply provide the parsed gatingTemplate and the GatingSet
recompute(gs)

# visualize Gating Hierarchy
plot(gs, bool = TRUE)

We see that all the helper gates are also visualized. We can’t remove them as it would affect downstream nodes! However we can hide them.

# Too many nodes being shown, let's hide helper gates
gt_toggle_helpergates(gt,gs)

# surface MAIT Cells
## labelled as helper since not_MAIT_Cells was created using reference for MAIT Cells
gs_pop_set_visibility(gs,
                      c("MAIT Cells"),
                      TRUE)
## $`4000_TNK-CR1`
## NULL
##
## $`4001_TNK-CR1`
## NULL
##
## $`4002_TNK-CR1`
## NULL
##
## $`4003_TNK-CR1`
## NULL
# visualize the full gated data
autoplot(gs[[2]], bool = TRUE, bins = 128)+
  ggcyto_par_set(limits = "data")

Conclusion

In this section we took a brief look at how to use a gatingTemplate csv file to compose and rapidly gate cells within a GatingSet. The portability of the gatingTemplate csv ensures that all users utilizing this template file will result in the exact same GatingHierarchy and gates.

There are additional functionalities in the openCyto library, which we did not go over due to time constraints. We encourage participants to explore the examples outlined here as well as read through the vignette.
